General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:DKT31CMDPHPD
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Docking Station

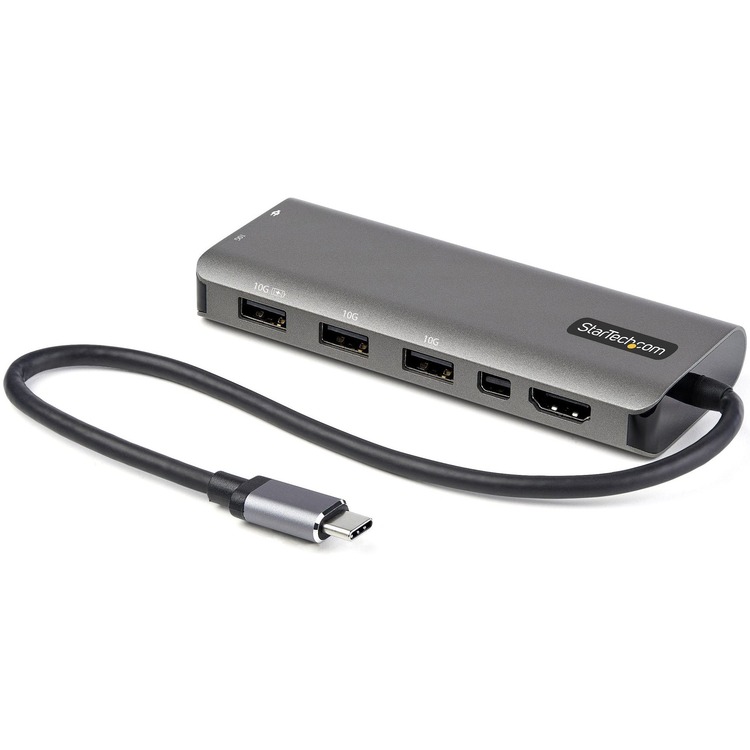

Marketing Information:This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.

Maximum Resolution

The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.

DP Alt Mode Required Maximum Resolution

DP 1.2 Alternate Mode Up to 4K 30Hz DP 1.4 Alternate Mode Up to 4K 60Hz

Connect Your Devices

The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.

Charge Your Laptop and Peripheral

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

The DKT31CMDPHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

Product Type:Docking Station

Technical Information

---

Connectivity Technology:Wired
Device Supported:Notebook/Tablet/Workstation/Monitor
Number of Displays Supported:1
Screen Mode Supported:4K
Supported Resolutions:4096 x 2160

Interfaces/Ports

---

Host Interface:USB 3.1 (3.1 Gen 2) Type C
Total Number of USB Ports:3
Number of USB Type-A Ports:1
Number of USB Type-C Ports:1
USB Type-A:Yes
USB Type-C:Yes
USB Type-C Detail:USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) ; USB-C (24 pin) USB Power Delivery only
Mini DisplayPort:Yes
Number of HDMI Ports:1
HDMI:Yes
Thunderbolt:Yes

Software

---

Operating System Supported:

• macOS 14
• Windows 8.1
• Windows 10
• Windows 11
• Mac OS X 10.13 High Sierra
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Ubuntu 18.04
• Ubuntu 20.04
• iPadOS
• Android

Power Description

---

Maximum Power Supply Wattage:100 W

Physical Characteristics

---

Height:6.30"
Width:16.70"
Weight (Approximate):3 oz

Miscellaneous

---

Package Contents:

• Docking Station
• Quick-Start Guide

Compatibility:

• Microsoft Surface Pro 7
• Apple iPad Pro
• HP Elite Notebook
• Dell XPS 13 9310
• Lenovo X1 Carbon 9th Gen
• Apple MacBooks
• Microsoft Surface Laptop 4
• Google Chromebook

Brand Compatibility:

• Apple
• Dell
• Microsoft
• Lenovo
• HP

Country of Origin:China

Warranty

---

Limited Warranty:3 Year
